Edgebanding machine - Softforming

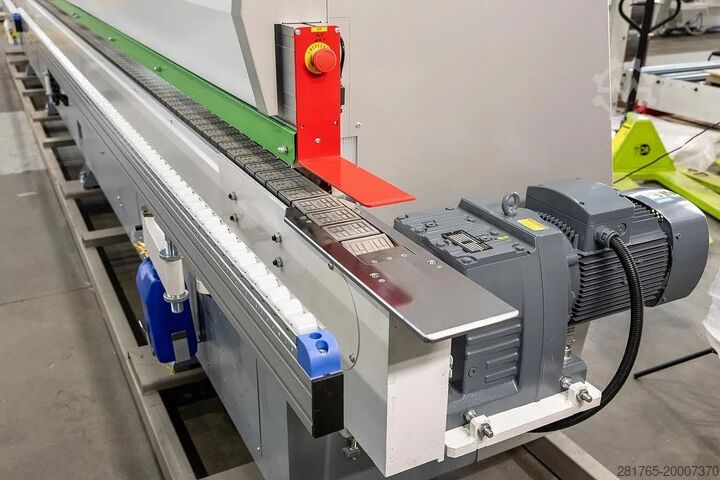

Nanxing NB875A

The Nanxing NB875A is a professional 2-in-1 edge banding solution that combines straight edge banding and Soft Forming technology in a single machine – perfect for handleless doors and modern furniture fronts.

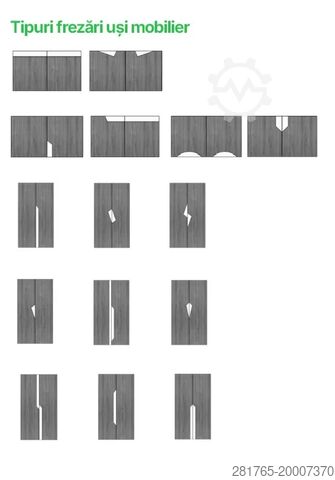

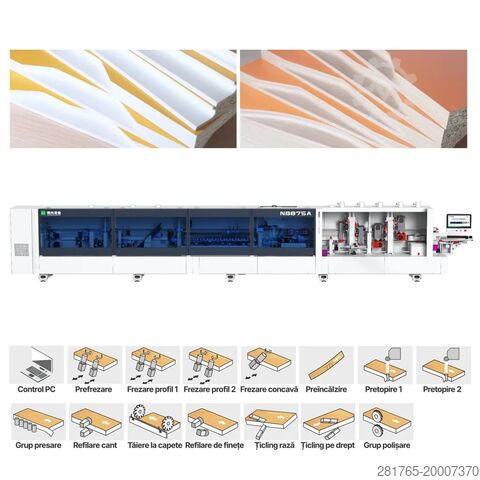

Equipped with a complete set of pre-milling, heating, pressing, and finishing units, NB875A delivers flexibility, high productivity, and premium edge quality. Its fully automated control system and intuitive software allow fast switching between 14 different profiles (full C, left/right J, concave center, concave left/right, W-shaped, diamond profiles, etc.).

Key Highlights
Multi-functional machine for both straight and softforming edge banding in one pass.
14 profiles available, automatically switchable via servo control.
Energy-saving function – automatic standby mode after idle time.

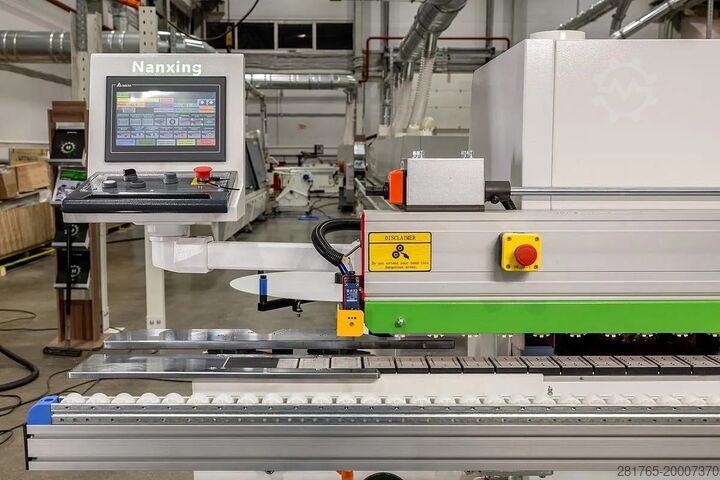

Advanced industrial control PC with 24” touchscreen, online connectivity, optional barcode reader.
Fully enclosed machine with sound-absorbing material for low-noise operation.
CE certified, international brand electrical components.

Working Units & Equipment
Pre-milling unit with 2 electro-pneumatic motors, H35 mm cutters.

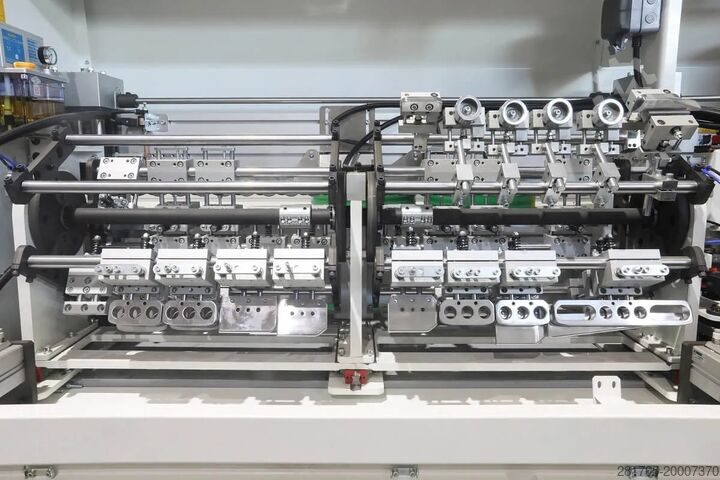

2 sets of J & C profile milling units (4 motors – 7.5 kW + 3.5 kW) with automatic switching.
Panel pre-heating + 2 glue application units (panel + edge).

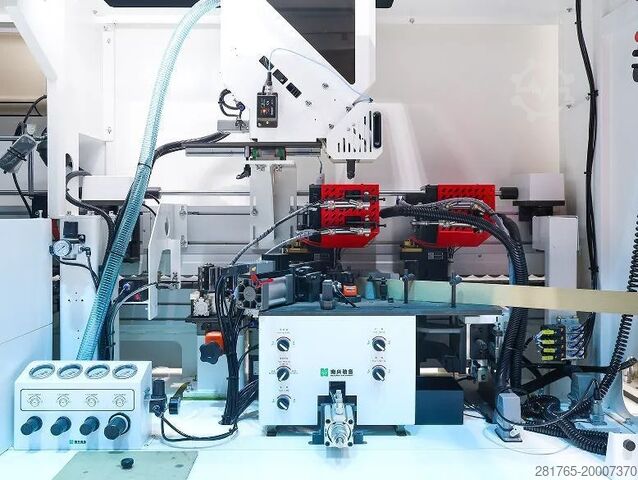

Softforming & pressing station with precision steel rollers and band pre-heating system.
Servo-driven tape feed & pneumatic end trimming (Ø180×3.5×60T saws, 12,000 rpm).

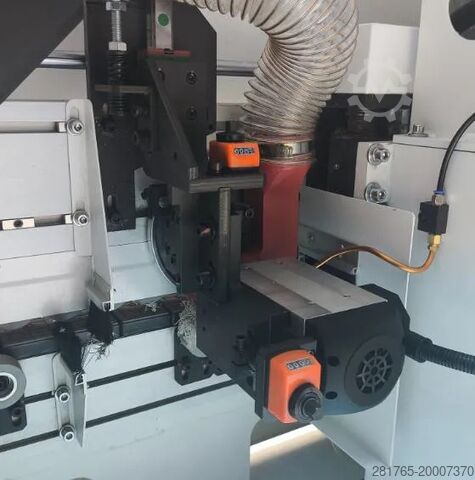

Rough & fine trimming units, radius scraping & flat scraping.
Double buffing units for a perfect glossy finish.

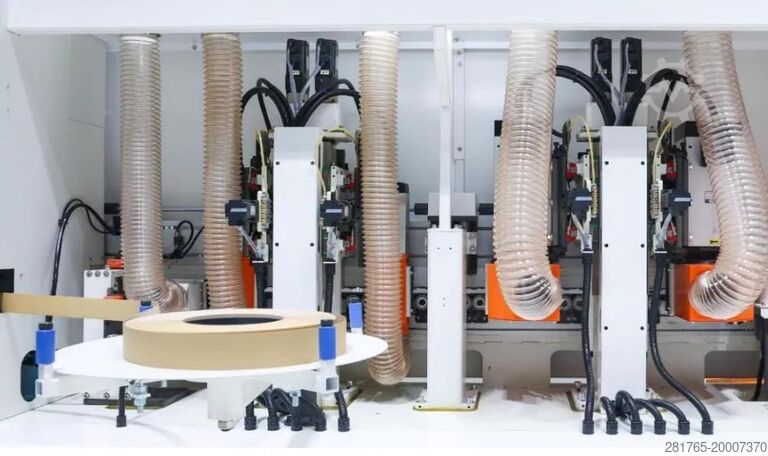

Independent dust extraction hoods (9 × Ø125 mm) for all processing units.
Automatic lubrication system and full safety protection (panel thickness detection, feed monitoring, E-STOP).

Technical Specifications
Minimum panel size: 300 × 150 mm (central concave ≥ 400 mm)
Panel thickness: 18 mm (straight), 18–25 mm (softforming)
Dedpoxcwrmsfx Ahzswd
Edge band thickness: 0.5–0.6 mm (softforming), 0.5–1.2 mm (straight)
Feed speed: 8 m/min
Power supply: 380V / 50Hz
Air pressure: 0.7 MPa
Installed power: 68 kW
Net weight: approx. 6,000 kg
Machine dimensions: 11,015 × 1,000 × 1,940 mm

Applications

Production of handleless doors for kitchens, wardrobes, and bathroom furniture
Complex edge banding operations in medium and large-scale production
Premium edge finish with invisible glue line
Advantages for Manufacturers
Maximum versatility: one machine for all straight & softforming edge banding profiles.
Superior finish: smooth edges, perfect glue adhesion.
High efficiency: automatic operation, quick profile changeover.
Cost reduction: fewer machines required, minimal downtime.
