Hydraulic four column press

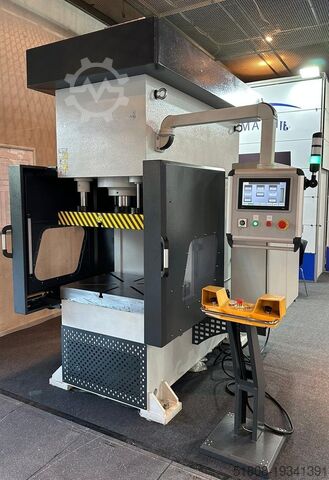

KK-Industries Made in Europa Einständer C-Presse 100 t

pressure: 100motor: 11daylight: 500stroke lenght (max.): 400Tappet adjustment: 790 x 600table height: Fußboden zu Tischplatte Oberkannte - 850messurements (LxWxH): 1.300 x 2.000 x 2.750weight approx.: 5.500oil filling: 200Type: Hydraulic C-Frame PressCapacity: 100 tons at 230 barControl / Key Switch Modes:Setup Mode – Manual operation without light sensor
Automatic Mode – Full speed with integrated light sensor
Hydraulic System:Main Cylinder: Ø 230 mm
Auxiliary Cylinders: 2 pcs, Ø 50 x 30 mm
Auxiliary Guides: 2 pcs, Ø 50 mm
Motor: 11 kW / 15 HP
Pump: 16 cc, 23 L/min – Helical gear pump
Speed:Approach: 110 mm/sec
Return: 200 mm/sec
Pressure phase: 9 mm/sec

Machine Dimensions:Daylight Opening: 500 mm
Stroke Length: 400 mm
Ram Plate: 790 x 600 mm (with T-slots)
Table Plate: 790 x 600 mm (with T-slots)
Table Height: 850 mm (from floor to top of table)
Hydraulic Equipment:REXROTH hydraulic control block & components
Pressure adjustable via PLC (20 – 100 tons)
Speed adjustable via PLC
Air oil cooler
Pre-fill valve
Pressure hold valve
Control System:Siemens S7-1200 PLC
Main control cabinet
Safety PLC (SICK)
Light curtains (SICK – 700 mm)
Linear encoder for stroke adjustment
Chedpfewrkctjx Afxod
10” PLC touchscreen – BEIJER (German & English)
Movable two-hand control unit
Ethernet connection for remote support
Visual and acoustic fault alarms
Dual work area lighting
In full compliance with EN 693 machine safety regulations
Side safety doors (outward opening)
Hydraulic proportional valves
Dual-channel safety control
User manual & parts list (German)
Oil Volume: 220 L (Tank capacity: 250 L)Total Weight: approx. 5,500 kgOverall Dimensions: 1300 x 2000 x 2750 mmColor: RAL 7035 Light Grey & RAL 7016 Anthracite Grey


Besichtigung unter Strom bei uns in Böheimkirchen 3071 (Neustiftgasse 34) möglich.
