Filling Monoblock

Custom ALPHA 32-32-8

Used filling monoblock CUSTOM ALPHA 32 32 8 11000 BPH


The Used filling monoblock Costum Alpha 32-32-8 bottles carbonated beverages and water both still and sparkling in PET containers using an isobaric process. Custom manufactured this model in 2004 consequently it reaches a production capacity of 11000 bottles per hour for the 0.25 L format with reduced speeds for larger formats.


Main Technical Features


The Used filling monoblock CUSTOM ALPHA 32 32 8 11000 BPH operates with a clockwise rotation system and integrates three main operational sections rinsing filling and capping. Therefore it ensures a smooth production process.


Rinsing Section of the Used filling monoblock Costum Alpha 32-32-8


The machine uses 32 grippers to handle bottles and applies a single treatment for internal container cleaning before filling. By eliminating additional washing phases it optimizes efficiency and reduces process times. As a result production runs more efficiently.

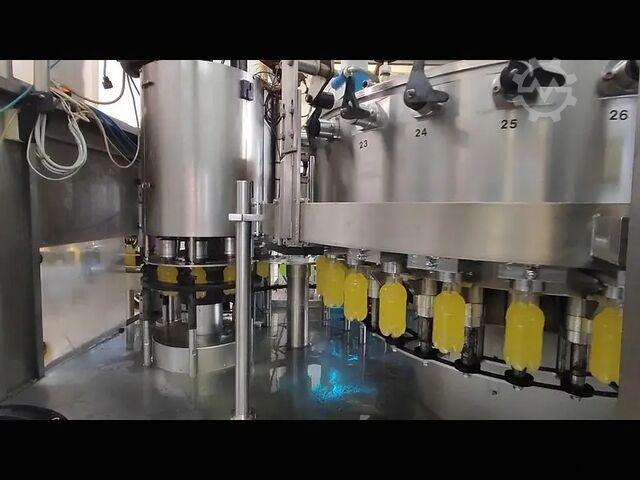

Filling Section


The filler contains 32 isobaric filling valves with fixed nozzles that maintain a constant and controlled liquid flow. Additionally this system delivers high dosing precision and minimizes the risk of overfilling or product waste. In other words it ensures both accuracy and minimal loss.


Capping Section in the Used filling monoblock Costum Alpha 32-32-8


The integrated capping system supports plastic screw caps and operates with 8 capping heads. Specifically it is designed for 1881 and 1810 neck types. Consequently the system included in the Used filling monoblock Costum Alpha 32-32-8 applies caps securely ensuring an airtight seal and protecting the bottled product. Moreover it enhances product safety.


Formats and Productivity


The Used filling monoblock Costum Alpha 32-32-8 processes bottles of various capacities adjusting productivity accordingly. For example it fills 11000 bottles per hour for the 0.25 L format while the speed decreases to 4900 bottles per hour for the 1.5 L format. Similarly intermediate formats such as 0.33 L and 0.50 L achieve proportional productivity levels. As a result it provides a flexible solution for different production needs.


Electrical Data and Dimensions

Crodpev Ng Uhefx Anioi

The machine operates at 380V 50Hz with a power consumption of 6 kW. Furthermore its dimensions are




Width 3150 mm


Length 4200 mm


Height 2500 mm




Safety and Lifecycle of the Used filling monoblock Costum Alpha 32-32-8


The Used filling monoblock Costum Alpha 32-32-8 includes safety devices that maintain compliance with current regulations. In addition these features enhance operational reliability. The machine will remain in operation until the end of 2026 thus allowing for several more years of use before requiring an upgrade or replacement. Given this longevity it represents a valuable investment.


The machine provides a reliable technical solution for companies needing an efficient isobaric filling system. Furthermore it remains compatible with various PET bottle types and is suitable for medium scale production. As a final point its design ensures long term efficiency and performance.
