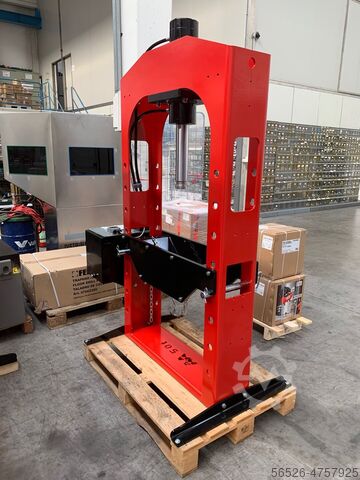

50 ton hydraulic press

AXA P50MR

The motorized hydraulic press P50MR guarantees high performance and maximum precision thanks to its robust structure, entirely laser-cut without welds in the areas of greatest stress.

It is equipped with an immersion motor power unit 400 [V] 50-60 [Hz], a rapid approach and return pump calibrated to 20 [bar], plus an adjustable pressure pump with a handwheel to achieve the required power.

It is also equipped with a maximum pressure valve with mechanical locking to prevent overpressure, and the pressure gauge (standard) allows for extremely precise calibration of the power output.

Power: 50 tons
Distance between inner uprights: 800 mm
Approach speed: 1800 mm/min
Working speed: 350 mm/min
Rapid return flow rate: 26 l/min
Slow return flow rate: 5 l/min
Cylinder stroke: 300 mm
Cylinder bore: 135 mm
Rod diameter: 70 mm
Rod thread diameter: M30
Tank capacity: 50 liters
Maximum pressure: 350 bar
Cjdpefvhqgsfx Ai Eohd
Voltage: 400 V
Frequency: 50-60 Hz
Motor power: 3 kW
Maximum absorbed current: 5.5 A
Weight: 500 kg
Dimensions: 1550 x 800 x 1965 (h)
