Power – Free Conveyor Systems

PROTON Power – Free Conveyor

POWER&FREE CONVEYOR SYSTEMS

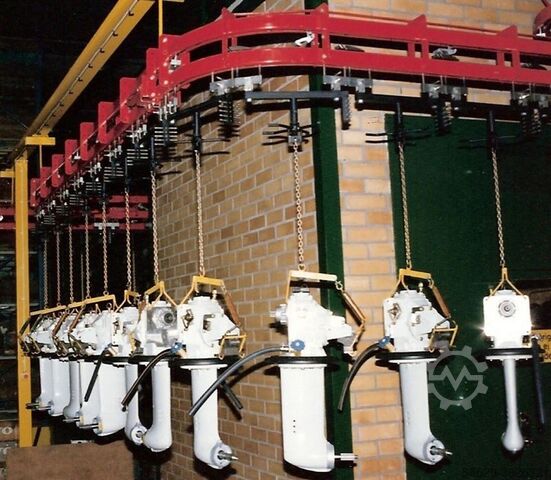

Overhead Power & Free Conveyors have free trolleys that are driven by power chains and carriers that transport the material to a given location.

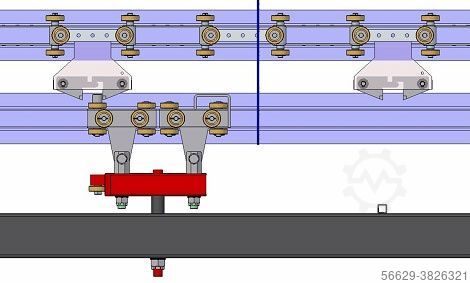

The carriers are attached to the free trolleys and are normally engaged to the power chain by an attached pusher dog assembly on the free trolley. The pusher dog can be disengaged by a cam action in either the free trolley or the chain dog, caused by accumulating behind another free trolley or by engaging a stop blade. The chain continues to move while the carrier becomes temporarily stationary until the free trolley becomes re-engaged with the chain.

Applications
Accumulating
Assembly
Bias & Trias Banking
Carrier Indexing
Elevation Changes
Production Rate Variation
Sort
Start/Stop
Storage
Transfer

Advantages:
High strength alloy castings increase life span
Stainless steel chain pusher dog
Modular designed conveyor components
Stops are simple, compact and corresponding to industry standard
Computer or programmable control systems

Not possible in standard hanger conveyor systems:
Bledpfx Akody Eyveqep
• Automatic stop and start of the system with the support of switches and sensors
• Transferring the transported material to different directions with the help of the scissors on the rails.
• Transport at different speeds in different parts of the conveyor
• You can easily perform its controls with the PLC control system integrated on the system.
• As long as possible, our designs are made by our expert engineering team with the principle of saving more time for your production, establishing an economical system that requires the least maintenance.
