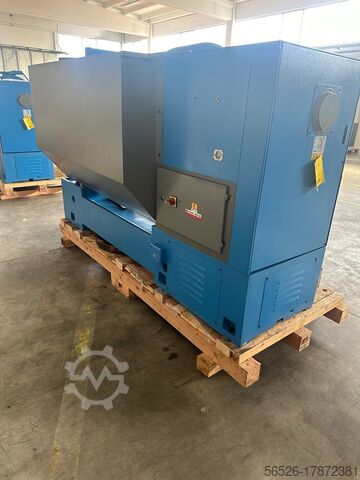

Parallel lathe 330 x 1000 mm

FERVI T094F10

Parallel lathe with clutch and display Fervi T085F10 with mechanical clutch, 3-axis display and semi-norton gear box.
Possibility of 2000 and 3000 mm distance between centers.

WITH MECHANICAL CLUTCH, 3-AXIS DISPLAY AND SEMI-NORTON GEAR BOX. EQUIPPED WITH JOYSTICK FOR ENTERING RAPID FEEDS. WITH SINGLE-BLOCK CAST IRON BASE.

Center height 330 mm
Max. diameter over bed 660 mm
Max. diameter over carriage 420 mm
Max. diameter over pocket 870 mm
Tool height 32 mm
Distance between centers 1000 mm
Bar passage 105 mm
Spindle attachment Camlock D1-8
Spindle speed (12) 36 - 1600 rpm
Longitudinal feeds 0.063 - 2.52 mm/rev
Cross feeds 0.027 - 1.07 mm/rev
Metric threads (22) 1 - 14 mm
Inch threads (26) 2 - 28 TPI
Tailstock taper CM 5
Motor 400V 50 Hz 7.5 kW
Coolant pump 400V 50 Hz 90 W
Dimensions 3000 x 1400 x 1600 mm
Bwsdovbqt Sspfx Aktew
Net weight 3330 Kg

Accessories included:

Self-centering chuck with 3 reversible jaws Ø320 mm
Platform with 4 independent jaws Ø 400 mm
Flange Ø 600 mm
Mobile steady rest
Fixed steady rest
Rotating tailstock CM 5
Thread comparator
Lead screw protection
Turret protection
Spindle protection
Rear splash guard
Quick change turret type C
LED lamp
Cooling system
Electro-mechanical foot brake
Quick locking tailstock carriage
Oil bath gears
Adjustable leveling feet
