Thread cutting machine

Bernardo TM 36 BLO/ R 1200

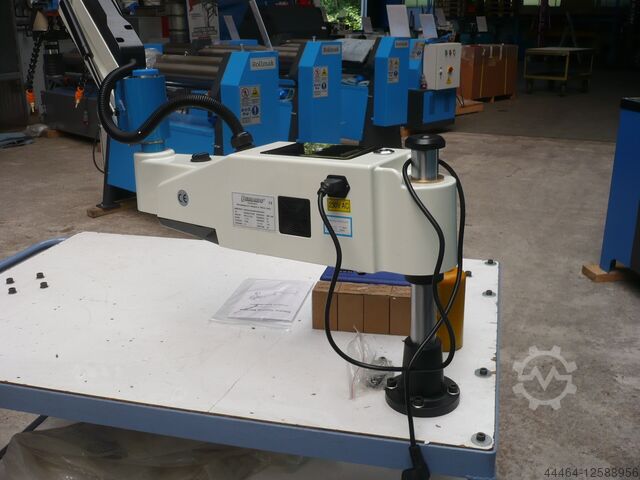

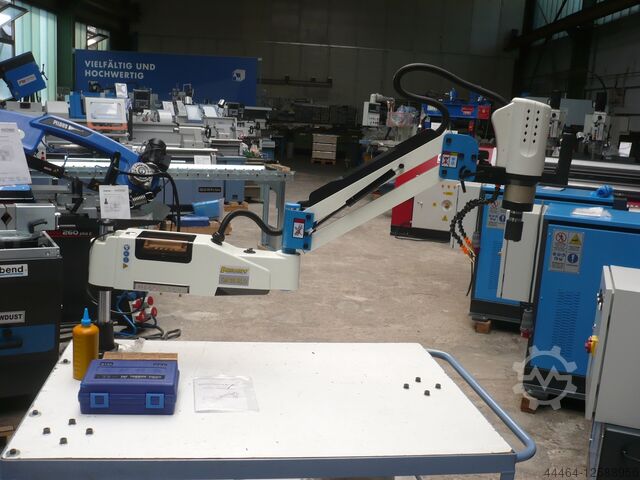

Bernardo TM 36 BLO/ R 1200 Electric threading machine
Technical specifications
Threaded holes* M5 - M36
Tool holder GT 24
Speed max. 30 - 150 rpm
Adjustable angle 0° - 90
Max. Working radius R 1200 mm

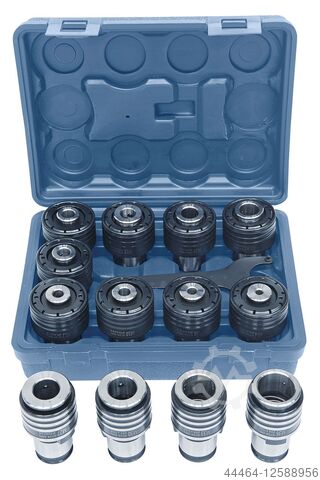

Quick-change chuck DIN 376: M5-6 / M8 / M10 / M12 / M14
M16 / M18 / M20 / M22-24 / M27 / M30 / M33 / M36
Motor power 1200 W
Voltage 230 V
Weight approx. 35 kg
* Material strength 400 N / mm2
Scope of delivery
Operation via touchscreen
Digital drilling depth display
Micro spray system
Blow-out device
Quick-change holder
Quick-change chuck according to DIN
Electric motor
90° angle adjustment
Mounting flange
Crjdpfxjpag R Ro Ai Dsi
features
With micro-spray system as standard for constant cooling and minimum cooling lubricant consumption
Includes blow-out device for removing chips, providing an optimum view of the drill hole
Includes quick-change chuck for using taps for through holes and blind holes
Swivel motor unit for tapping at any desired angle between 0° and 90
Higher accuracy compared to manual tapping, thread is guaranteed to be at right angles (90°)
High productivity, significant time savings compared to manual tapping
Quick-change chuck with integrated slip clutch prevents the tap from breaking
Includes swivel arm with large radius for easy positioning of the tap on the workpiece
For tapping in steel, stainless steel, aluminum and non-ferrous metals

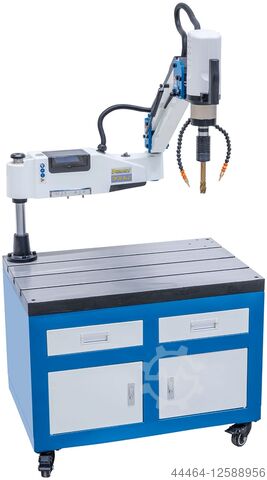

Price: Base frame 900 x 600 mm with 2 drawers for TM series 830.00 € plus 19% VAT
