Roller conveyor

CORMAK HRT 1m 4 rolki

1 m Roller Conveyor (4 Rollers)

The 1 m roller conveyor (4 rollers) is a professional material support and feeding system designed for use with band saws and other machines requiring stable material support during feeding or receiving operations. Thanks to its robust construction, high load capacity of up to 900 kg, and four steel rollers mounted on bearings, this roller conveyor ensures safe and smooth transport of various types of materials, including pipes, profiles, flat bars, and shafts. It is an essential solution for modern production plants and professional workshops.

Main advantages of the machine
High load capacity – up to 900 kg, ideal for heavy steel components.

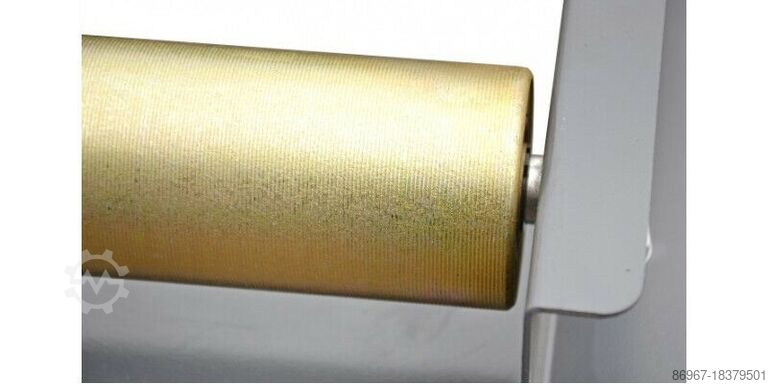

4 bearing-mounted steel rollers – diameter 60 mm, length 360 mm each.
Adjustable height range of 650–1100 mm – allows adaptation to different machines.
Expandable roller conveyor system – possibility of connecting multiple units.
Reinforced construction – additional crossbars increase rigidity and stability.
Design and technology

The entire structure is based on a durable steel frame, additionally reinforced in areas exposed to the highest loads. The main working elements are four steel rollers mounted on precision bearings, ensuring minimal rolling resistance even under heavy loads.

The 1000 mm long roller conveyor can operate as an independent module or be connected with additional sections to create a functional material handling system. The construction ensures safe and stable movement of components without the risk of shifting or slipping.

Precision and work efficiency

The roller conveyor significantly improves the efficiency of cutting, drilling, and welding processes by eliminating the need for manual material stabilization. The rollers rotate smoothly and evenly, allowing the operator to precisely position workpieces.

An additional advantage is the adjustable working height, which enables integration with various types of machines – from band saws to machining tables and automated production lines.

Applications

This model can be used in many industrial sectors, including:

Facilities involved in cutting and material preparation.
Production lines and machining workstations.
Welding and structural fabrication companies.
Steel and metal processing industries.

It is a universal and durable solution for anyone who values stability and efficiency when working with large and heavy materials.

Standard equipment
4 bearing-mounted steel rollers (60 × 360 mm)
Steel frame with reinforcing elements
Height adjustment system (650–1100 mm)
Anti-slip leveling feet
Technical specifications – 1 m roller conveyor (4 rollers)
Parameter Value
Bsdsvu R Dqspfx Akqolp
Roller diameter 60 mm
Roller length 360 mm
Number of rollers 4
Overall length 1000 mm
Overall width 450 mm
Height adjustment 650–1100 mm
Maximum load capacity 900 kg
Weight 50 kg
